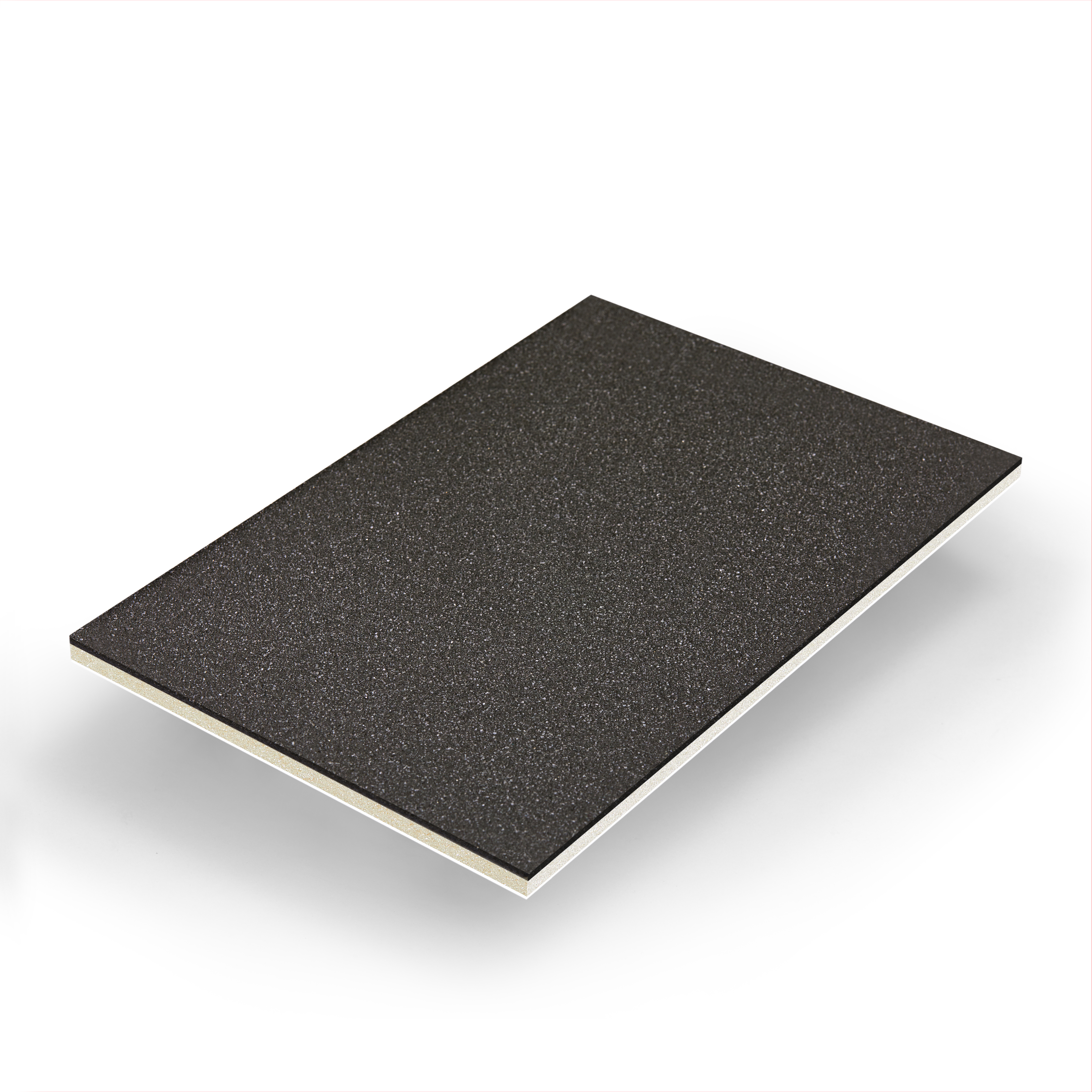

2.0 mm FRP (RAL 9003) + 6 mm PET Core + 1.5 mm Woven Roving FRP (RAL 9003)
FRP Anti-slip PET Sandwich Composite Panel is manufactured by bonding an anti-slip FRP surface, a PET core, and an FRP back skin using structural adhesive and specialized pressing equipment. It provides a lightweight yet heavy-duty platform with excellent grip, waterproof durability, and corrosion resistance—designed for box truck floors, RV floors, and ramp / loading platforms.
Why Choose This Panel
◊Anti-slip & wear resistant: Stable traction for wet/dirty working conditions
◊Waterproof & corrosion-proof: resists moisture, chemicals, and rot for long service life
◊Lightweight & high strength: optimized strength-to-weight ratio for vehicle flooring composite
◊Impact & fatigue resistant: suitable for frequent loading/unloading and long-term vibration
◊Easy to clean: durable FRP surface supports wash-down maintenance
Typical Applications
· Box truck / cargo vehicle floors
· RV & caravan floors / subfloors
· Road ramps, loading ramps, ramp surfaces and platforms
· Utility vehicle platforms and work decks
Technical Specifications
| Thickness | 10mm to 200mm |
| Width | ≤2.85 m |
| Length | ≤9.5m |
| Variety | RVs/Trucks |
| Color | Based on RAL/Pantone Card or Customized |
| Core material | PET core (thickness/density chosen based on insulation requirements) |
Product Description
This composite panel consists of three functional layers:
◊ Anti-slip FRP surface as the durable, easy-clean surface layer
+ ◊ 6 mm PET core as the lightweight, rigid core material providing stiffness and insulation benefits
+ ◊ 1.5 mm woven roving FRP back (RAL 9003) to enhance impact resistance and structural integrity
Produced through controlled bonding and curing, the panel ensures reliable integration between layers and serves as a high-performance alternative to steel, aluminum, or plywood flooring in demanding transport applications.
Customization & Supply
· Dimensions: customized length, width, and total thickness per design
· Surface options: anti-slip texture grade, colors (custom RAL), and surface finish
· Core options: PET thickness and density selectable for targeted strength-to-weight performance
· Laminate options: Alternative fiberglass types (CSM / woven roving / multi-axial) to meet specific mechanical targets
· Batch supply: stable lead time, project-based supply, and technical collaboration support
