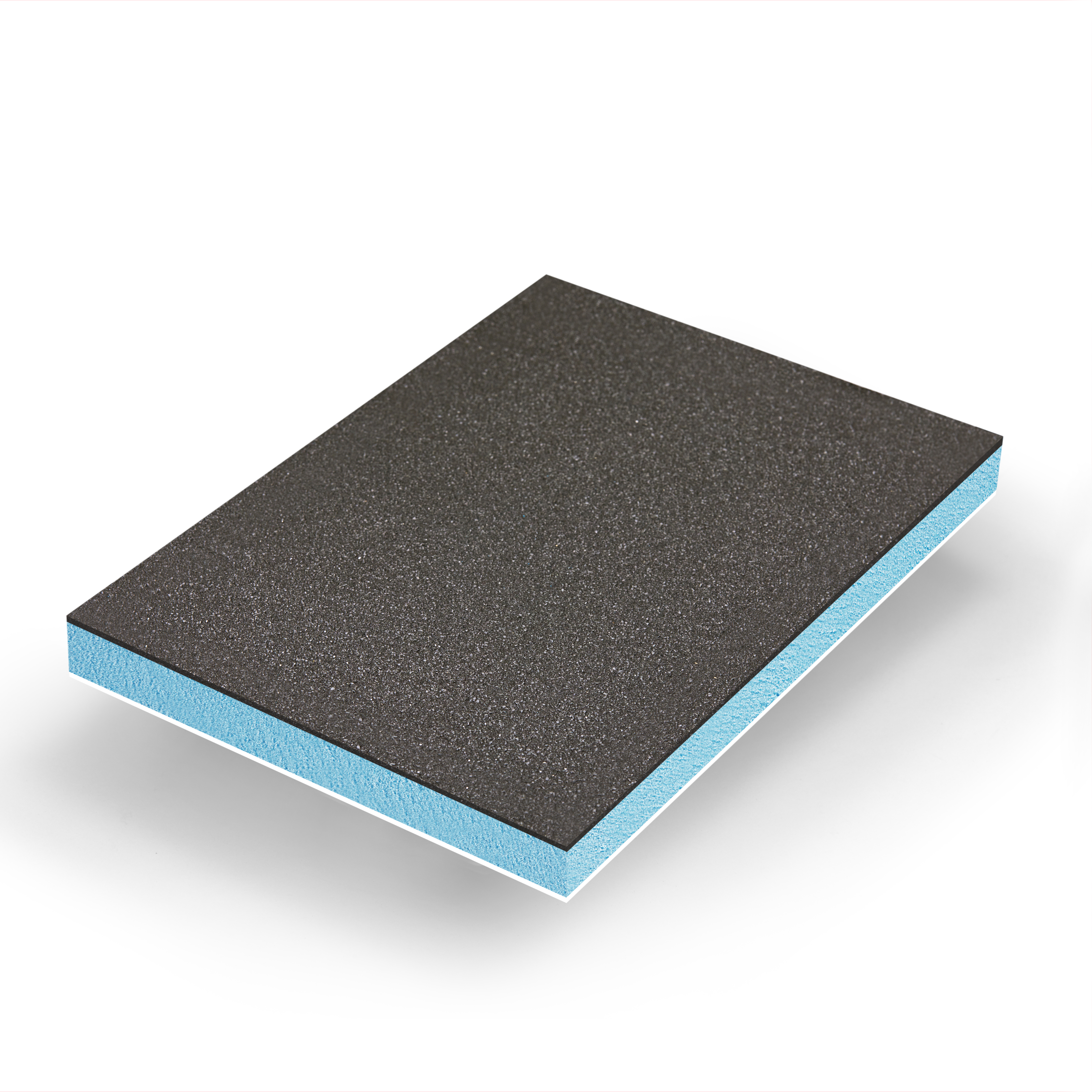

2.0 mm Sand Anti-Slip Surface (RAL 7011 Grey) + XPS Core (20 mm ) + 2.0 mm Gel-Coated FRP (RAL 9003)
Decorative Sand Anti-slip XPS Sandwich Composite Panel is manufactured by bonding a quartz-sand surface layer, an XPS insulation core, and a gel-coated FRP skin using PU structural adhesive with specialized pressing or vacuum equipment. It combines durable decorative appearance, high thermal insulation, and excellent weather resistance, making it suitable not only for truck flooring but also for off-road RV exterior wall panels.
Why Choose This Panel
◊Decorative Anti-Slip Sand finish: Premium textured appearance for off-road RV exterior walls
◊Wear & scratch resistant surface: Robust texture helps hide minor scratches and impacts
◊Superior thermal insulation: XPS core improves heat retention and temperature stability
◊Lightweight & cost-effective: Practical structure balancing performance and budget
Typical Applications
◊RVs & Caravans: Off-road RV exterior wall panels (decorative & durable surface)
◊Refrigerated truck floors
◊Ramp / work deck surfaces (project-dependent)
Technical Specifications
| Thickness | 10mm to 200mm |
| Width | ≤2.85 m |
| Length | ≤9.5m |
| Variety | RVs/Trucks |
| Color | Based on RAL/Pantone Card or Customized |
| Core material | XPS core (Thickness selectable based on insulation and strength requirements) |
Product Description
This composite panel consists of three functional layers:
· 2.0 mm Sand surface (RAL 7011) providing a decorative, durable textured finish
+ XPS insulation core (20 mm typical, selectable) offering excellent insulation and moisture resistance
+ *2.0 mm gel-coated FRP layer (RAL 9003) providing a tough, easy-clean inner skin
· Produced through controlled bonding and curing, the panel ensures tight integration between layers, delivering a stable appearance, reliable insulation performance, and long-term durability for both vehicle floors and RV wall applications.
Customization & Supply
· Dimensions: customized length, width, and total thickness per design
· Core options: PET thickness and density selectable for targeted strength-to-weight performance
· Surface options: Sand texture grade and color customization (outer/inner skins)
· Laminate options: Alternative fiberglass types (CSM / woven roving / multi-axial) to meet specific mechanical targets
· Batch supply: stable lead time, project-based supply, and technical collaboration support
