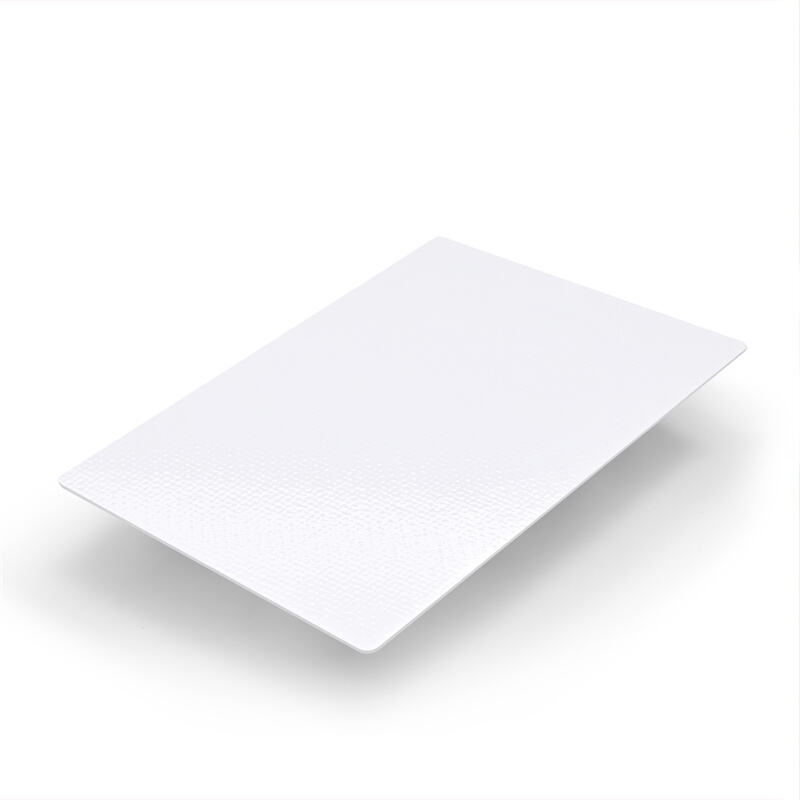

Van/Truck FRP Sheet
CSM (Gelcoat Side) + Woven Roving (Back Side) | Smooth Surface + High Strength Backing
This truck FRP sheet is reinforced with chopped strand mat (CSM) on the gelcoat side for excellent flatness and appearance, and woven roving on the reverse side for high mechanical strength. The surface is sealed with a durable gelcoat layer, delivering strong UV and weather resistance. The woven roving back provides better bonding and load transfer when laminating to core materials, making it ideal for truck body panels and sandwich composite production.
- Overview
- Recommended Products
Why Choose This Panel
◊ Smooth, flat gelcoat surface: clean appearance for truck exterior/interior panels
◊ Woven roving backing (back side): higher strength and impact resistance with multi-direction reinforcement
◊ Excellent bonding to cores: roving back adheres tightly to XPS/PU/honeycomb cores for resin glue and PU injection
◊ UV & weather resistant: gelcoat-sealed surface for long-term outdoor durability
◊ Chemical-resistant & food-safe options: suitable for refrigerated transport environments (project-dependent)
Typical Applications
◊ Refrigerated trailers / trucks: internal & external walls, roofs, doors, floors
◊ Box trucks & commercial bodies: wall panels, doors, linings (project-dependent)
◊ Motorhomes & caravans: exterior wall panels, roofs, doors
◊ Buses: internal & external wall panels
◊ Tanks: cover surfaces / protective cladding
Technical Specifications
| Thickness | 1mm to 3mm |
| Width | ≤3.2m |
| Length | 120m in Coil/Roll Customized in Sheet |
| Variety | Van/Trucks |
| Color | Based on RAL/Pantone Card or Customized |
| Barcol hardness | ≥35 |
| Bending radius | ≥250mm |
Product Description
This laminate combines two reinforcements with different functions: CSM on the gelcoat side improves flatness and surface uniformity, while woven roving on the reverse side provides higher tensile and flexural strength with multi-direction reinforcement. The gelcoat surface improves UV and weather stability, while the roving back enhances adhesion to core materials, making the sheet suitable for resin glue bonding and polyurethane injection processes in sandwich panel manufacturing
Customization & Supply
◊ Supply form: coils or cut-to-size sheets
◊ Process compatibility: resin glue bonding / PU injection / sandwich panels with XPS, PU, PET, honeycomb cores
◊ Surface options: glossy or matte; protective film available
◊ Colors: standard RAL 9003 and custom RAL/Pantone matching
◊ Batch supply with stable lead time and technical collaboration support
