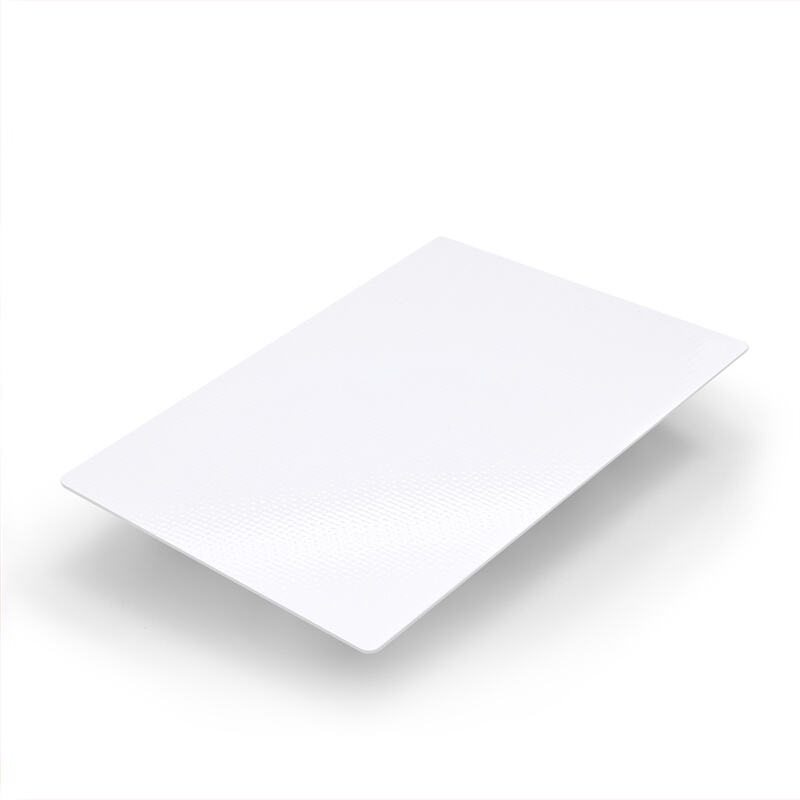

Woven Roving FRP
Woven Roving (Gelcoat Side) + CSM (Back Side) | Attractive Pattern + Economic Solution
The Woven Roving sheet is is a gel-coated FRP sheet featuring woven roving on the gelcoat surface side to create an attractive woven pattern, and chopped strand mat (CSM) on the reverse side for improved flatness and bonding. It combines good multi-direction mechanical strength with a decorative surface appearance. With a gelcoated surface, it offers strong UV and weather resistance and is easy to clean, making it a cost-effective choice for commercial vehicles, construction wall/ceiling panels, and enclosure applications.
- Overview
- Recommended Products
Why Choose This Panel
◊ Attractive woven roving surface: premium pattern similar to high-impact series, but more economical
◊ Good multi-direction strength: woven roving reinforcement provides strong tensile/flexural performance
◊ UV & weather resistant: gelcoat-sealed surface for long-term outdoor durability
◊ Easy to clean & hygienic: suitable for vehicle interiors/exteriors (food-safe & chemical resistant options available)
◊ Excellent process compatibility: suitable for PU injection and bonding with XPS / honeycomb / core panels
Typical Applications
◊ Commercial vehicles: interior & exterior walls, roofs, doors
◊ Construction: wall panels and ceiling panels
◊ Electric cabinets & mobile cabins: interior and exterior panels
◊ Special vehicles: linings and protective panels (project-dependent)
Technical Specifications
| Thickness | 1mm to 3mm |
| Width | ≤3.2m |
| Length | 120m in Coil/Roll Customized in Sheet |
| Variety | Van/Trucks |
| Color | Based on RAL/Pantone Card or Customized |
| Barcol hardness | ≥35 |
| Bending radius | ≥250mm |
Product Description
This laminate uses two reinforcements with different functions: woven roving on the gelcoat surface delivers decorative pattern and improved mechanical strength in multiple directions, while CSM on the reverse side supports better flatness and adhesion when laminating to core materials. The gelcoat layer seals the surface for UV stability, weather resistance, and easy cleaning. It is an economic solution offering an attractive woven surface and reliable performance for vehicles and construction applications.
Customization & Supply
◊ Supply form: coils or cut-to-size sheets
◊ Process compatibility: PU injection / resin glue bonding / laminating with XPS, PU, PET, honeycomb cores
◊ Surface options: glossy or matte; protective film available
◊ Colors: standard RAL 9003 and custom RAL/Pantone matching
◊ Batch supply with stable lead time and technical collaboration support
